KONE MonoSpace® DX with external shaft

The KONE MonoSpace® DX redefines the elevator experience with built-in connectivity for improved people flow and a new and inspiring user experience that really connects – on every level.

Powered by the compact, energy-efficient KONE EcoDisc® hoisting motor, the KONE MonoSpace® DX saves valuable space in your building by completely removing the need for a machine room.

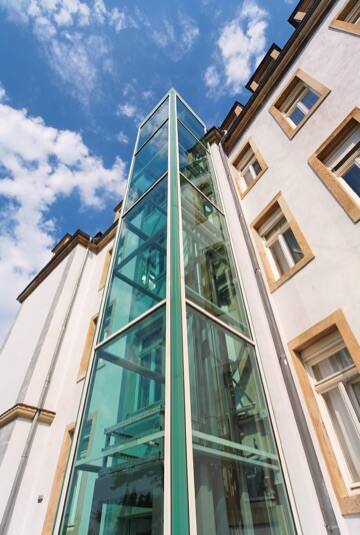

The KONE MonoSpace® DX with external shaft is designed for buildings where there isn’t enough space inside the building for an elevator shaft.

Key features

img_monospace-external-shaft-360x535
  • Digital connectivity - Future-proof your building with an elevator that offers new digital services and solutions enabled by cloud connectivity and based on KONE APIs.
  • Best-in-class eco-efficiency – Save energy and cut your building’s carbon footprint with a machine room-less elevator that offers eco-efficient hoisting, high-efficiency regenerative drive, long-lasting LED lighting, and energy-saving standby operation.
  • Carbon neutrality – Take a step closer to your climate targets with our option to compensate for the remaining embodied CO2 emissions of your MonoSpace® DX elevator.
  • A redefined elevator experience – Create a memorable and inspiring elevator experience for tenants and visitors with our new material, lighting, and signalization options.
  • Compliance you can rely on – With the KONE MonoSpace® DX you can rest assured that your building’s elevators are compliant with all relevant codes and regulations, including accessibility, vandal-resistance, and operation during a fire.
  • Easy to upgrade – With easy digital integration and the possibility to upgrade in the future as your needs change, you’re all set to add new connected services as and when you need them.

KONE MonoSpace DX with external shaft

KONE MonoSpace DX solutions

Take a look at the specifications below to see which of the three KONE MonoSpace DX solutions is right for your building.

SOLUTIONDESCRIPTIONMACHINE ROOMMAX. TRAVELMAX. SPEEDMAX. LOAD / PERSONSMAX. GROUP SIZE
KONE MonoSpace 700 DXFlexible passenger elevator for commercial buildings with demanding people-flow requirements.No90 m or 36 floors3.0 m/s2,500 kg/up to 33 persons6
KONE MonoSpace 500 DX
Versatile passenger elevator for low and mid-rise residential and commercial buildings.No75 m or 24 floors1.75 m/s1,150 kg/up to 15 persons4
KONE MonoSpace 300 DX
Cost-efficient passenger elevator for low-rise residential buildingsNo40 m or 14 floors1.0 m/s1,000 kg/up to 13 persons2

KONE MonoSpace DX with external shaft

Your partner for smart, sustainable building

Plan and design your elevator today

KONE Car Designer

KONE Car Designer

With our digital design tool you can create your own unique elevator car interior by combining materials, lighting, and accessories – and then bring your vision to life with 3D modelling.

KONE MonoSpace DX elevators downloads

Other retrofit elevators

KONE ProSpace™

  • MAX. TRAVEL 30 m
  • MAX. LOAD 9 persons
  • MAX. SPEED 0.6 m/s
Find out more
